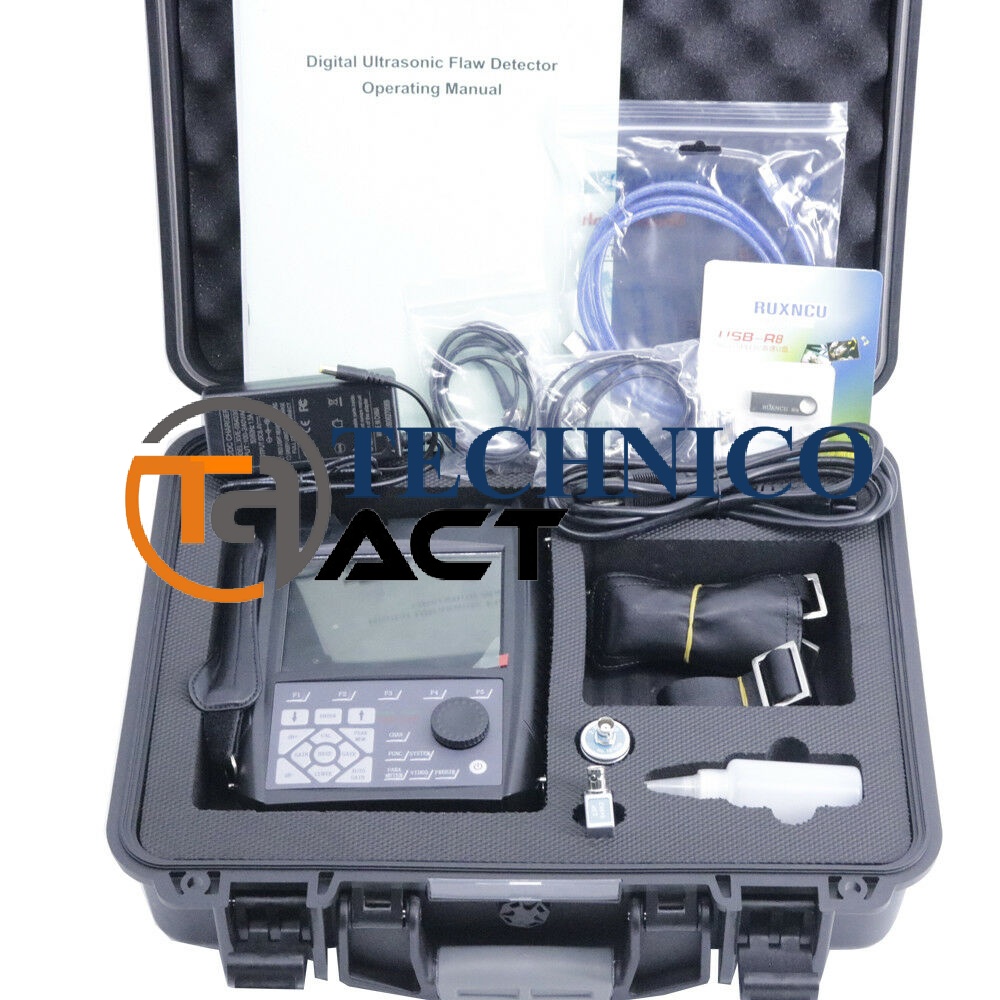

Graigar SUB100 Digital Ultrasonic Flaw Detector
Price:
$978.00
SKU:
TA0482
Condition:
New
Rating:
Availability:
In Stock
Shipping:
$50.00 (Fixed shipping cost)
Product Description
Specifications :
- Scan Range 0~10000mm
- Velocity range 1000 m/s~9999m/s
- Gain 0dB~110dB
- Display Delay -20μs~+3400μs
- Sensor Zero Offset 0μs~99.99μs
- Sensor Frequency 0.1~15MHz
- Sensor Damping 100Ω,150Ω, 200Ω,500Ω
- Repetition Rate 10~1000Hz
- Sensitivity Allowance ≥60dB(D:200mm ,FBH:Diameter=2)
- Resolution ≥40dB
- Linear Rejection 0~80%
- Vertical Linearity deviation ≤3%
- Horizontal Linearity deviation ≤0.2%
- Dynamic Range ≥32dB
- Pulse Pattern square
- Pulse Strength 100V——800V
- Pulse Width 50ns——1000ns
- Power Supply 12×3.7V(Li-ion Battery)
- Operation Temperature 20°C~50°C
- Humidity 20%~90%RH
- Size 250(L)mm×80(W)mm×150(H)mm
- Weight 1.7kg(include battery)
